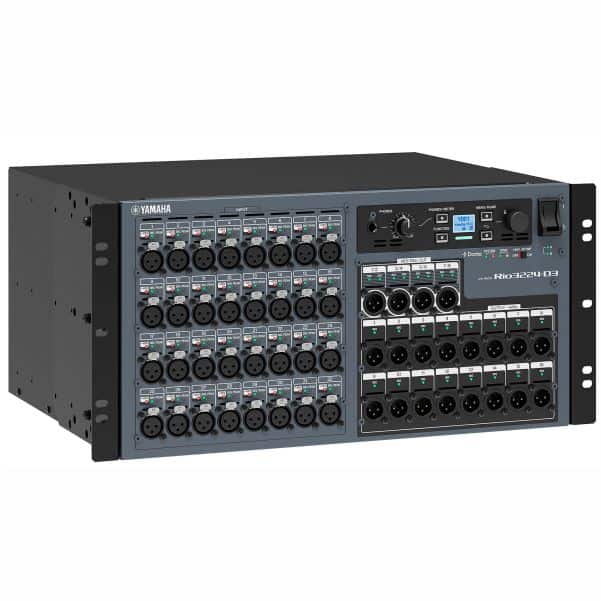

This Dante-compatible unit features 32 analog inputs, 16 analog outputs, and 8 digital AES/EBU outputs, enabling flexible system configuration with Yamaha digital mixers and processors. The Rio3224-D3 is housed in a sleek, sturdy chassis and features a redundant power supply that ensures serious reliability, while the newly added headphone socket and output delay provide additional versatility.
Analog I/O: 32 inputs / 16 outputs
AES/EBU: 8 outputs
Dante: 26 receive / 32 transmit channels
Comprehensive display and local control of gain, delay and other parameters.

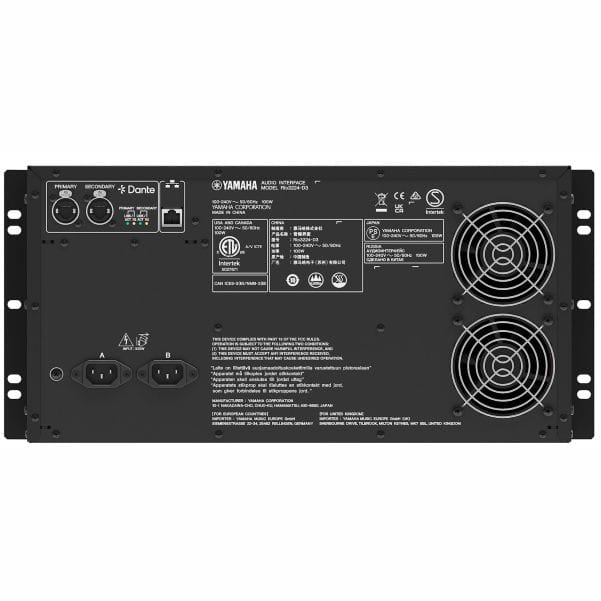

Dual power supply units are built in for high reliability.
Onboard headphone socket
Power consumption: 100 W
Dimensions (WxHxD): 480 x 220 x 370 mm (18.9” x 8.7” x 14.6”)
Yamaha Rio3224-D3 I/O Rack
$11,339.99
Description
Yamaha Rio3224-D3 I/O Rack
This Dante-compatible unit features 32 analog inputs, 16 analog outputs, and 8 digital AES/EBU outputs, enabling flexible system configuration with Yamaha digital mixers and processors. The Rio3224-D3 is housed in a sleek, sturdy chassis and features a redundant power supply that ensures serious reliability, while the newly added headphone socket and output delay provide additional versatility.
Additional information
